Deluxe square corner-entry shower in two sizes
The Aeros 14000 Aqua Series is a fully enclosed deluxe shower cubicle with a square footprint, corner entry and two internal sliding doors. It is available in 900 × 900 mm and 1000 × 1000 mm external sizes.
Both doors slide inside the enclosure rather than swinging across the surrounding bathroom floor. The square footprint provides more internal showering room than a round model with the same external dimensions.
The 14000 Aqua Series may suit renovations, ensuites, rental-property upgrades, granny flats, modular buildings, second showers and buyers wanting deluxe water outlets in a square corner-entry configuration.
Browse all square shower cubicles or view the complete Aeros shop.
Choose the correct 14000 Aqua Series size
These measurements are the shower cubicle’s external measurements.
| Model | External size | Selection guidance |
|---|---|---|
| 14090 | 900 × 900 mm | Choose when the available floor area suits a 900 × 900 mm external footprint. |
| 14100 | 1000 × 1000 mm | The larger 14000 Aqua Series variation, providing more internal showering room. |
Before ordering, check the available floor area, the 2150 mm minimum installation height, plumbing locations, waste position and the clearance required to assemble and connect the shower.
Select a size on this page to see its current price and availability.
Why choose the 14000 Aqua Series?
Square corner-entry design
The two doors meet at the corner and slide inside the cubicle, providing corner access without requiring door-swing space outside the shower.
Push-button quick-release bottom wheels provide access to the lower tracks for cleaning and servicing. Straight-grip handles provide a practical handhold on both doors.
Two separate water-selection controls
The WaterMark 3-way mixer diverter controls the water temperature and flow and directs water to one of three selections:
- The rainfall-shower circuit
- The waterfall spout
- Four brass back jets positioned for the lower back while seated
The adjustable rainfall shower arm has a separate integrated 2-way diverter. This selects either the rainfall shower or the three-function hand shower.
The mixer cartridge is accessible from the front for servicing without dismantling the shower walls.
Leakproof 100% silicone-free frame assembly
The white powder-coated aluminium frame uses Aeros’ leakproof clip-lock construction. The frame assembles without screws, glue or silicone.
The 100% silicone-free claim applies to the clip-lock frame assembly. Plumbing connections, waste fittings and installation-specific work may still require appropriate materials selected by the installer.
With no grout or silicone inside the cubicle, its smooth wall panels are easier to clean than a conventional tiled shower enclosure and help prevent mould.

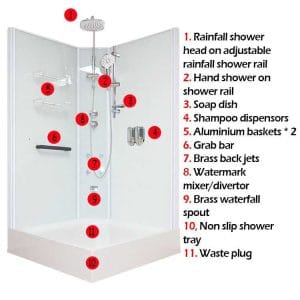

What is included?
- White powder-coated aluminium clip-lock frame
- Opaque aqua wall panels
- Clear 5 mm toughened safety-glass front panels and doors
- Two internal sliding corner-entry doors
- Magnetic door strips
- Push-button quick-release bottom wheels
- Straight-grip door handles
- Reinforced non-slip acrylic shower base
- Steel base-support frame
- Adjustable levelling legs
- WaterMark 3-way mixer diverter
- Adjustable rainfall shower arm with integrated 2-way diverter
- Rainfall shower head
- Three-function hand shower and hose
- Adjustable hand-shower rail with soap dish and holder
- Waterfall spout
- Four brass lower-back jets
- Two shampoo dispensers
- Two storage baskets
- Internal grab bar
- WaterMark-approved stainless-steel braided hoses behind the rear panel
- 50 mm horizontal shower waste plug
Technical specifications
| Feature | 14000 Aqua Series specification |
|---|---|
| Shape | Square |
| Entry | Corner entry |
| External sizes | 900 × 900 and 1000 × 1000 mm |
| Doors | Two internal sliding doors |
| Bottom wheels | Push-button quick-release |
| Handles | Straight-grip handles |
| Frame | White powder-coated aluminium |
| Frame assembly | Leakproof 100% silicone-free clip-lock construction; no screws, glue or silicone |
| Safety glass | 5 mm AS/NZS 2208 toughened safety glass |
| Glass licence | CSI Licence number 7671 |
| Shower base | Reinforced non-slip acrylic base |
| Base support | Steel frame with adjustable levelling legs |
| Base-entry height | 220 mm |
| Deluxe water selection | Rainfall-shower circuit, waterfall or four brass lower-back jets |
| Rainfall-arm selection | Rainfall shower or three-function hand shower |
| Rainfall-arm height | Adjustable from 2150 to 2290 mm |
| Minimum installation height | 2150 mm |
| Maximum water pressure | 500 kPa |
| Supplied waste | 50 mm horizontal waste plug |
| Waste position | 260 × 260 mm from the rear corner |
Water efficiency
The 14000 Aqua Series uses the registered combination shower set.
| WELS detail | Result |
|---|---|
| Registration | S14515 |
| Highest flow | 3 stars — 9.0 L/min |
| Lowest flow | 6.0 L/min — not star rated |
Plumbing and drainage
The buyer or installer must arrange the items needed to connect the shower to the property, including:
- Two mini stops
- Suitable hoses from the mini stops to the WaterMark 3-way mixer diverter
- Waste pipe and required couplings
- A suitable water trap
- Any other fittings or installation materials required by the property
The shower includes WaterMark-approved stainless-steel braided hoses for the internal water connections behind the rear panel and a 50 mm horizontal waste plug.
The confirmed waste position is 260 × 260 mm from the rear corner. Check this measurement against the actual shower base before preparing or drilling the floor.
Connect and test the water supply and waste before moving the shower into its final position. Plumbing work must comply with local requirements, and appropriately licensed trades must be used where required.
Cleaning and maintenance
The silicone-free, grout-free interior helps prevent mould, and the smooth wall panels can be wiped down without the grout cleaning associated with tiled shower enclosures. The push-button quick-release bottom wheels provide access to the lower door tracks for cleaning and servicing.
Installation, assembly and glass safety
Follow the assigned double-door square-model assembly guide. Test every water and waste connection before moving the shower into its final position.
Do not drill the toughened safety glass. All required holes must be made before the glass is tempered.
14000 Aqua Series or 4000 Series?
Both models are square corner-entry shower cubicles with two internal sliding doors. The main difference is the shower equipment included.
| Feature | 14000 Aqua Series | 4000 Series |
|---|---|---|
| Model level | Deluxe | Basic |
| External sizes | 900 × 900 and 1000 × 1000 mm | 800 × 800, 900 × 900 and 1000 × 1000 mm |
| Shape and entry | Square corner entry | Square corner entry |
| Doors | Two internal sliding doors | Two internal sliding doors |
| Bottom wheels | Push-button quick-release | Push-button quick-release |
| Handles | Straight-grip | Straight-grip |
| Shower system | Rainfall shower, hand shower, waterfall and four back jets | Rainfall shower and hand shower |
| Additional accessories | Two baskets, two shampoo dispensers and an internal grab bar | Simpler basic accessory package |
| Best suited to | Buyers wanting deluxe water outlets and additional accessories | Buyers wanting a simpler system or an 800 × 800 mm option |
Choose the 14000 Aqua Series if you want the waterfall, lower-back jets and additional internal accessories.
Consider the 4000 Aqua Series if you prefer a simpler rainfall-and-hand-shower system or require the smaller 800 × 800 mm external size.
14000 Aqua Series or 12000 Series?
Both models include deluxe water outlets, two internal sliding doors and similar internal accessories. The main difference is the shape and how each uses the available space.
| Feature | 14000 Series | 12000 Series |
|---|---|---|
| Shape | Square | Round corner |
| External sizes | 900 and 1000 mm | 900 and 1000 mm |
| Internal room | More internal room for the same external size | Less internal room because of the curved front |
| Bathroom floor space | Uses the complete square footprint | Curved front frees more usable space outside the shower |
| Water outlets | Rainfall shower, hand shower, waterfall and four back jets | Rainfall shower, hand shower, waterfall and four back jets |
| Best suited to | Buyers prioritising internal showering room | Compact bathrooms where external floor space is important |
Choose the 14000 Series when maximising internal showering room is more important than preserving bathroom floor space.
Consider the 12000 Aqua Series when the curved front would provide more usable space around the shower.
14000 Aqua Series freight details
The 14000 Aqua Series is supplied across two pallets. Pallet 1 contains the glass components and Pallet 2 contains the shower tray. Use the model-specific dimensions and weights below when planning delivery and handling.
| Model | Pallet | Contents | Dimensions | Weight |
|---|---|---|---|---|
| 14090 | Pallet 1 | Rear-wall carton; door carton; middle-panel carton | 194 × 77 × 29 cm | 80 kg |
| 14090 | Pallet 2 | Shower tray carton with accessories | 95 × 95 × 34 cm | 40 kg |
| 14100 | Pallet 1 | Rear-wall carton; door carton; middle-panel carton | 194 × 85 × 29 cm | 90 kg |
| 14100 | Pallet 2 | Shower tray carton with accessories | 105 × 105 × 34 cm | 50 kg |
Confirm access, unloading arrangements and the applicable freight service before ordering. See the Shipping Policy for delivery conditions.
Delivery, warranty and Aeros support
Aeros has supplied more than 10,000 shower cubicles since 2000, with national delivery available. Shower cubicles are generally delivered kerbside, so review the Shipping Policy before ordering.
The established warranty is five years for tapware and three years for other parts, subject to the warranty conditions. See Registration and Warranty for the complete conditions and optional bonus-warranty information.
Replacement parts and customer support are available.
Select your size
Choose 900 × 900 mm or 1000 × 1000 mm above to see its current price and availability. Once the correct size is selected, add the shower to your cart.
If you are unsure about size, corner entry, internal space, plumbing, drainage or delivery, contact Aeros before ordering.
