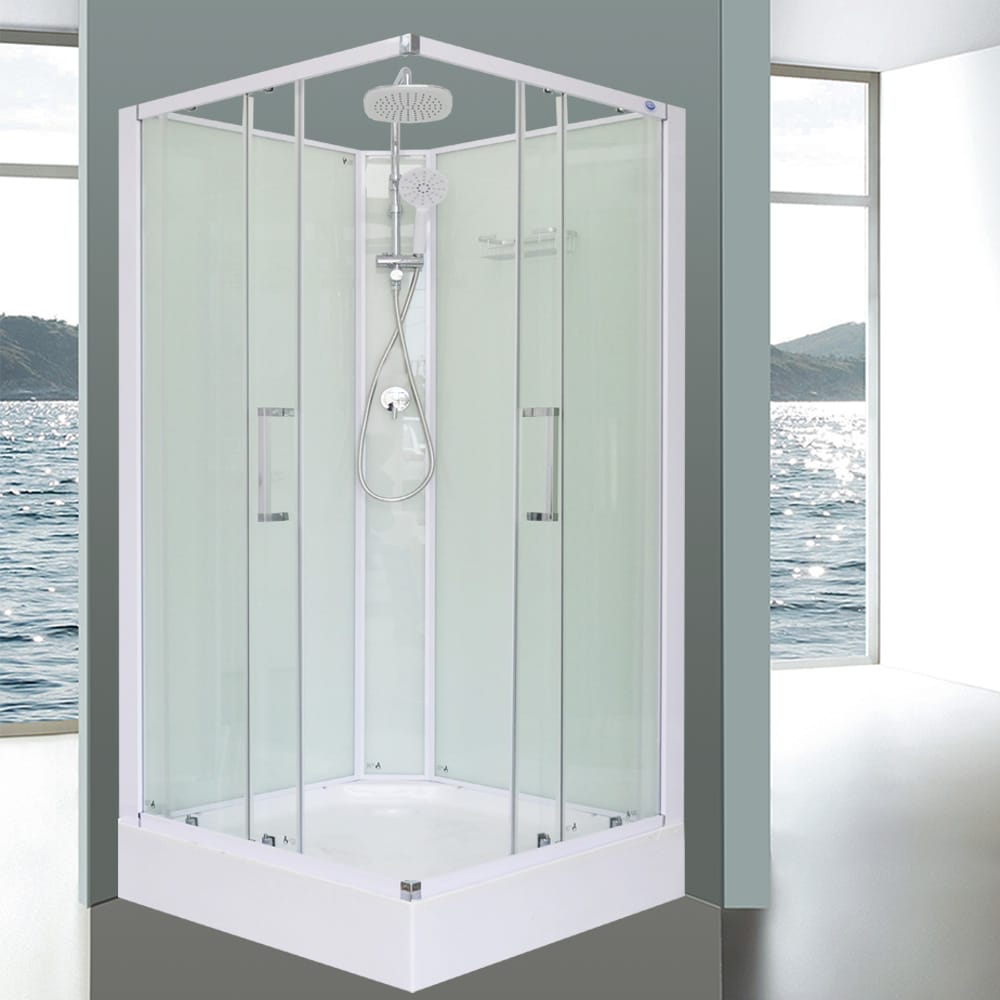

4000 Aqua Series square corner-entry shower cubicle
The Aeros 4000 Aqua Series is a fully enclosed square corner shower cubicle with two internal sliding doors. The doors meet at the corner and slide within the enclosure, avoiding the bathroom-floor clearance required by an outward-opening shower door.
Available in 800 × 800 mm, 900 × 900 mm and 1000 × 1000 mm external sizes, the 4000 Aqua Series gives renovators, DIY buyers, landlords, builders and granny-flat owners a choice of three footprints. Its corner-opening design may be particularly useful in compact bathrooms, ensuites, rental upgrades and second-shower installations.
The 4000 is positioned as a budget-friendly basic model while retaining the Aeros watertight clip-lock construction, safety glass, reinforced non-slip base, rainfall shower and separate hand shower.
Browse all square shower cubicles or view the complete Aeros shop.
Choose the correct 4000 Aqua Series size
The following measurements are the shower cubicle’s external measurements.
| Model | External size | May suit |
|---|---|---|
| 4080 | 800 × 800 mm | Compact ensuites and small bathroom areas |
| 4090 | 900 × 900 mm | Standard bathrooms and renovation layouts |
| 4100 | 1000 × 1000 mm | Buyers wanting more internal showering room |
Before ordering, check the available floor area, minimum installation height, plumbing position and clearance needed to assemble and connect the shower.
Select a size on this page to see its current price and availability.
Why choose the 4000 Aqua Series?
Space-saving double corner entry
The 4000 Aqua Series uses two internal sliding doors that meet at the front corner. Both doors move within the enclosure instead of swinging out across the bathroom floor.
This corner-opening design may be the better choice when fixtures and bathroom furniture restrict the available approach.
Magnetic door strips help the two doors meet securely when closed.
Watertight 100% silicone-free assembly
The white powder-coated aluminium frame uses Aeros’ watertight clip-lock construction. The shower cubicle assembles without screws, glue or silicone.
The fully enclosed construction provides an alternative to building a conventional tiled shower enclosure. There are no tiled walls or grout inside the shower cubicle to clean and maintain.
Budget-friendly basic model
The 4000 Aqua Series is designed for customers who want the main benefits of an Aeros enclosed shower cubicle without the additional waterfall and back-jet features found in deluxe models.
It may suit:
- Bathroom renovations
- Rental-property upgrades
- Granny flats and modular buildings
- Second showers
- Compact ensuites
- DIY and owner-builder projects
- Trade installations requiring a repeatable enclosed-shower design
Easier door and mixer maintenance
The two sliding doors use push-button quick-release bottom wheels. These provide access to the lower tracks for cleaning and make the doors easier to release when servicing is required.
Straight-grip handles provide a practical handhold on both sliding doors.
The flick mixer uses a front-access cartridge. If the cartridge requires servicing, it can be reached from the front without dismantling the shower walls.
Rainfall shower and hand-shower controls
The adjustable rainfall shower arm uses a 2-way diverter to select either the rainfall shower or the three-function hand shower. The separate flick mixer controls water temperature and flow.

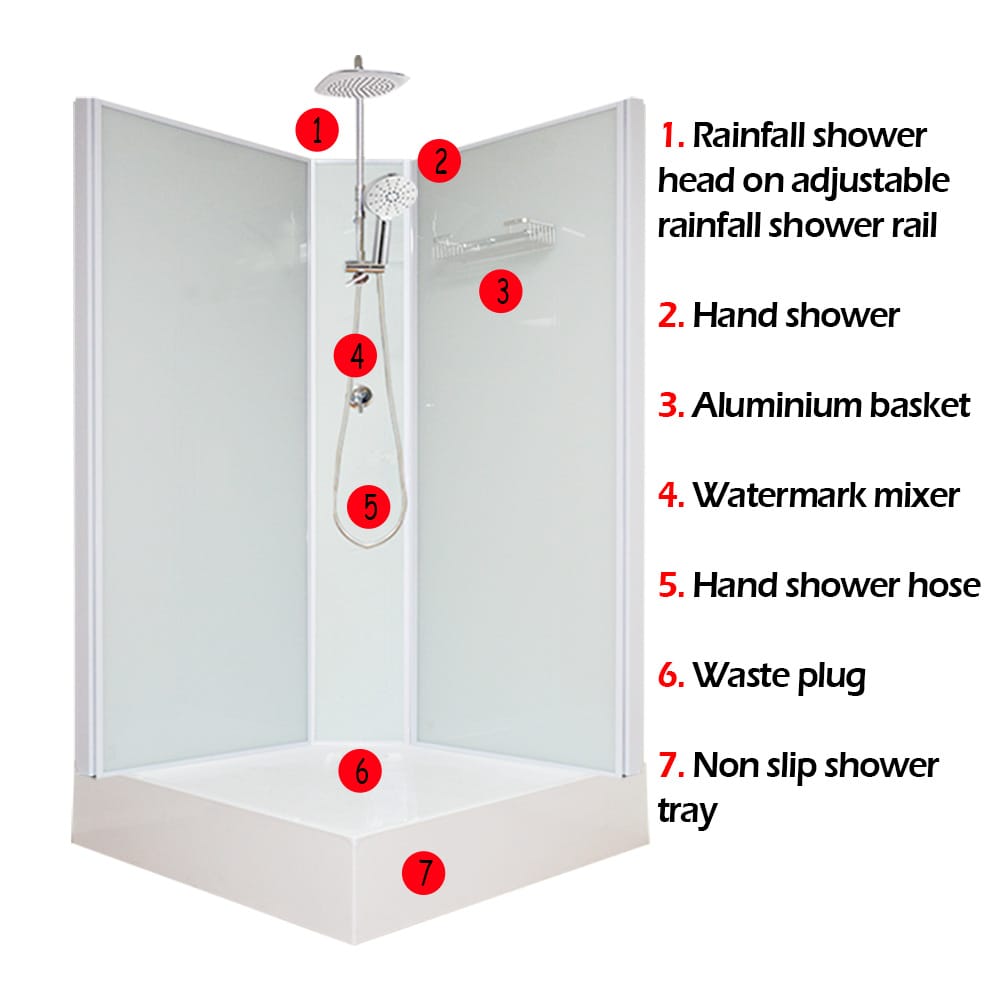

What is included?
- White powder-coated aluminium clip-lock frame
- Opaque aqua wall panels
- Clear front safety-glass panels
- Two internal sliding corner-entry doors
- Magnetic door strips
- Push-button quick-release bottom wheels
- Straight-grip door handles
- Reinforced non-slip acrylic shower base
- Steel base-support frame
- Adjustable levelling legs
- Adjustable rainfall shower arm
- Two-way diverter
- Rainfall shower
- Three-function hand shower
- Hand-shower hose
- Flick mixer with front-access cartridge
- WaterMark-approved stainless-steel braided hoses behind the rear panel
- Single storage basket
- 50 mm horizontal waste plug
Technical specifications
| Feature | 4000 Aqua Series specification |
|---|---|
| Shape | Square |
| Entry | Corner entry |
| External sizes | 800 × 800, 900 × 900 and 1000 × 1000 mm |
| Doors | Two internal sliding doors |
| Bottom wheels | Push-button quick-release |
| Handles | Straight-grip handles |
| Frame | White powder-coated aluminium |
| Assembly | Watertight 100% silicone-free clip-lock construction |
| Panels | Opaque aqua wall panels with clear front safety glass |
| Safety glass | 5 mm AS/NZS 2208 toughened safety glass |
| Glass licence | CSI Licence number 7671 |
| Shower base | Reinforced non-slip acrylic base |
| Base support | Steel frame with adjustable levelling legs |
| Base entry height | 220 mm |
| Shower selection | Rainfall shower or three-function hand shower |
| Rainfall-arm height | Adjustable from 2150 to 2290 mm |
| Minimum installation height | 2150 mm |
| Maximum water pressure | 500 kPa |
| Supplied waste | 50 mm horizontal waste plug |
| Waste position | 260 × 260 mm |
Water efficiency
The 4000 Aqua Series uses the registered combination shower set.
| WELS detail | Result |
|---|---|
| Registration | S14515 |
| Highest flow | 3 stars — 9.0 L/min |
| Lowest flow | 6.0 L/min — not star rated |
The two-way diverter allows the user to select either the rainfall shower or the three-function hand shower.
Plumbing and drainage
The buyer or installer must arrange the connections required for the property, including:
- Two mini stops
- Suitable hoses from the mini stops to the flick mixer
- Waste pipe and required couplings
- A suitable water trap
- Any other fittings required by the installation
The shower includes WaterMark-approved stainless-steel braided hoses behind the rear panel and a 50 mm horizontal waste plug.
The confirmed waste position is 260 × 260 mm. Check all measurements against the actual shower base before preparing or drilling the floor.
Connect and test the water supply and waste before moving the shower into its final position. Plumbing work must comply with local requirements, and appropriately licensed trades must be used where required.
Cleaning and maintenance
The fully enclosed design has no grout inside the shower cubicle. The smooth wall panels can be wiped down without the grout cleaning associated with many tiled shower enclosures.
The push-button quick-release bottom wheels help provide access to the lower door tracks for cleaning and servicing.
Installation, assembly and glass safety
Follow the assigned double-door square-model assembly guide, level the base using the adjustable legs, and test every water and waste connection before moving the shower into its final position.
Do not drill the toughened safety glass. Any required holes in toughened glass must be made before the glass is tempered.
4000 Aqua Series or 11000 Series?
Both are basic corner-entry shower cubicles with two internal sliding doors and are available in 800, 900 and 1000 mm external sizes. The important difference is their shape and how they use the available space.
| Feature | 4000 Aqua Series | 11000 Series |
|---|---|---|
| Shape | Square | Round corner |
| Entry | Corner entry | Corner entry |
| Doors | Two internal sliding doors | Two internal sliding doors |
| Internal showering space | More internal room for the same external size | Less internal room because of the curved front |
| Bathroom floor space | Uses the complete square footprint | Curved front frees up more usable space outside the shower |
| Best suited to | Buyers prioritising internal showering room | Compact bathrooms where external floor space and movement are priorities |
| Bottom wheels | Push-button quick-release | Push-button quick-release |
| Handles | Straight-grip | Straight-grip |
Choose the 4000 Series if you want more internal showering space and have enough bathroom floor area for its square footprint.
Consider the 11000 Aqua Series if you are willing to accept less internal showering space in exchange for more usable floor space around the shower. Its rounded front can make movement easier in a compact bathroom.
Delivery pallet dimensions and freight weights
Each 4000 Aqua Series shower is packed across two pallets: Pallet 1 contains the glass and Pallet 2 contains the shower tray. Use the confirmed dimensions and freight weights below when planning delivery and handling.
| Model | Pallet | Contents | Dimensions | Freight weight |
|---|---|---|---|---|
| 4080 | 1 | Rear-wall carton; door carton; middle-panel carton | 194 × 62 × 29 cm | 70 kg |
| 4080 | 2 | Shower tray carton with accessories | 85 × 85 × 34 cm | 30 kg |
| 4090 | 1 | Rear-wall carton; door carton; middle-panel carton | 194 × 77 × 29 cm | 80 kg |
| 4090 | 2 | Shower tray carton with accessories | 95 × 95 × 34 cm | 40 kg |
| 4100 | 1 | Rear-wall carton; door carton; middle-panel carton | 194 × 85 × 29 cm | 90 kg |
| 4100 | 2 | Shower tray carton with accessories | 105 × 105 × 34 cm | 50 kg |
Delivery, warranty and Aeros support
Aeros offers national delivery. Shower cubicles are generally delivered kerbside, so review the Shipping Policy before ordering.
The established warranty is five years for tapware and three years for other parts, subject to the warranty terms. See Registration and Warranty for the conditions and information about the optional bonus warranty.
Aeros has supplied more than 10,000 shower cubicles since 2000. Replacement parts and customer support are available.
Select your size
Choose 800 × 800 mm, 900 × 900 mm or 1000 × 1000 mm above to see its current price. Once the correct size is selected, add the shower to your cart.
If you are unsure about the required size, corner entry, plumbing or delivery arrangements, contact Aeros before ordering.
