Is the 5000 Aqua Series 1200 × 900 Shower Right for Your Bathroom?
The 5000 Series buyers guide is designed to help Australian renovators, DIY buyers, landlords and builders decide whether this rectangular front-entry shower cubicle is the right fit. The 5000 Aqua Series combines a generous 1200 × 900 mm footprint with two internal sliding doors, a fully enclosed design and the essential shower fittings needed for a practical everyday bathroom. Keep the 5000 Series buyers guide available while measuring the room and comparing the confirmed model features.
Unlike a conventional tiled shower, the enclosure brings the walls, base, glass and plumbing components together as one coordinated cubicle. That can simplify planning, reduce reliance on wet-area wall preparation and remove grout from the shower interior. The 5000 Series buyers guide explains the confirmed dimensions, inclusions, installation requirements, drainage, delivery cartons and differences between the 5000 and deluxe 15000 model before you order.
Quick specifications
Use these confirmed details for a quick model check before measuring and ordering.
| Model format | 1200 × 900 mm rectangular front-entry fully enclosed shower cubicle |
|---|---|
| Doors and hardware | Two internal sliding doors, twin-post handles and spring-loaded quick-release bottom rollers |
| Glass and frame | 5 mm AS/NZS 2208 safety glass with a white powder-coated aluminium frame |
| Panels | Opaque Aqua internal panels with clear glass elsewhere |
| Base | Reinforced acrylic non-slip base with steel support frame and adjustable legs; 220 mm entry height |
| Shower height | Adjustable rainfall arm height 2150–2290 mm; minimum installation height 2150 mm |
| Included shower fittings | Flick mixer; adjustable rainfall shower arm with separate 2-way diverter; rainfall shower head; hand shower; one basket |
| Water rating | WELS registration S14515, 9.0 L/min, 3 stars; maximum pressure 500 kPa |
| Waste | 50 mm horizontal waste plug with confirmed rear-centre position of 600 × 260 mm; macerator compatible |
| Freight | Two pallets: glass pallet 90 kg and tray pallet 45 kg |
Who the 5000 Aqua Series suits
The 5000 Aqua Series is a strong choice when you want the extra elbow room of a rectangular enclosure without paying for deluxe jets and additional controls you may not use. Its 1200 mm width suits many main bathrooms, ensuite renovations, granny flats, modular buildings, rental upgrades and second-shower projects. The front-entry format is particularly useful where the long face of the shower is the most accessible side. The 5000 Series buyers guide helps match those practical needs to the confirmed basic model.
Because the two doors slide internally, they do not swing into the room. Entry can be arranged from either side, helping the cubicle work around a vanity, toilet or doorway. Use the 5000 Series buyers guide to check the full room layout, access path and service positions before ordering. The shower is substantial and arrives on two pallets, so the route from the delivery point to the installation area also matters. Review that access route with the 5000 Series buyers guide before delivery is arranged.
Confirmed 5000 shower cubicle size and layout
The model is 1200 × 900 mm and uses a rectangular front-entry layout. The 1200 mm dimension runs across the front, while the 900 mm dimension provides the depth. Two internal sliding doors meet across the front opening and can be configured so users enter from either side. This reversible arrangement offers more placement flexibility than a fixed one-sided opening. Use the 5000 Series buyers guide dimensions when marking the proposed footprint.
The 5000 Series buyers guide records a rainfall shower arm height of 2150 to 2290 mm. The minimum installation height is 2150 mm, so measure from the finished floor to the lowest ceiling obstruction and consider lights, cornices, bulkheads and ventilation fittings. The base-entry height is 220 mm. Buyers should consider whether that step is appropriate for each user; the 5000 is not represented as a level-entry or accessible shower. Recheck these height requirements against the 5000 Series buyers guide before preparing the room.

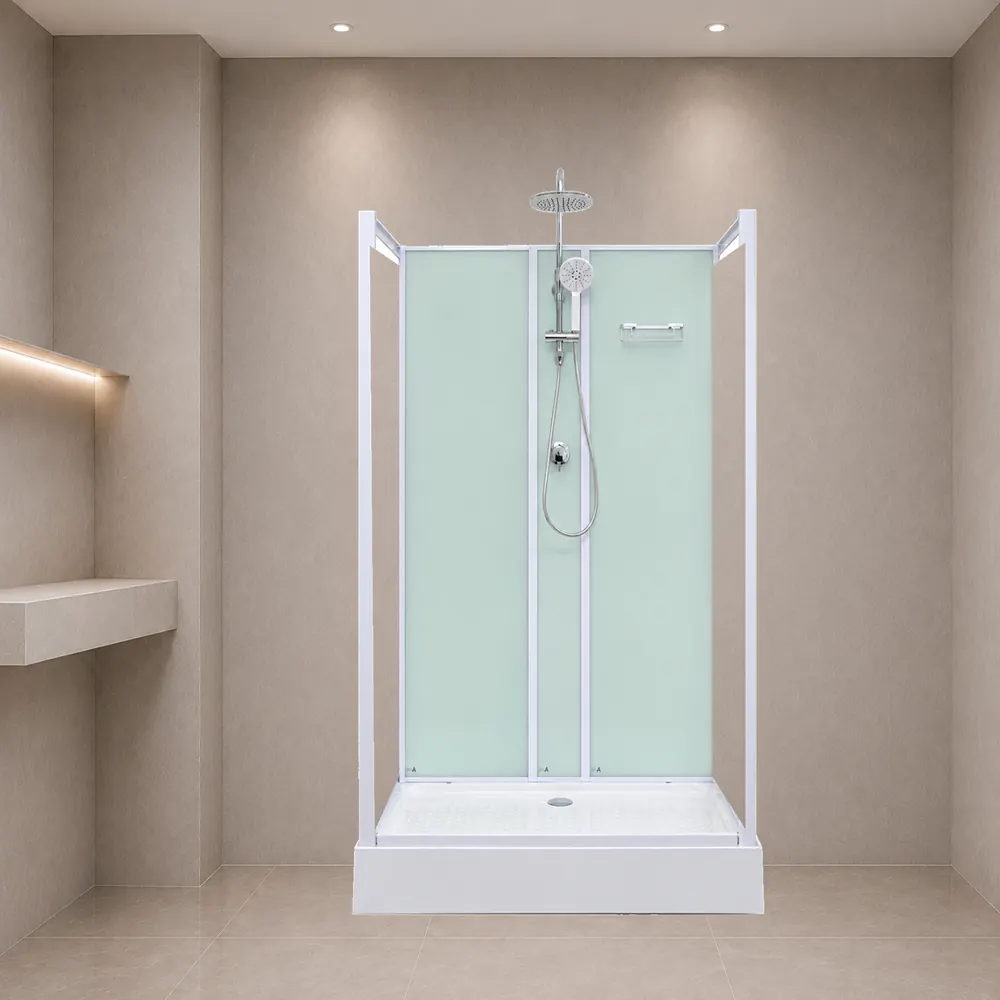

What is included with the 5000 Aqua Series
For this 5000 Series buyers guide, the basic Aeros model includes the following confirmed shower equipment:
- Flick mixer.
- Adjustable rainfall shower arm with 2-way diverter.
- Rainfall shower head.
- Hand shower.
- One basket.
This five-part list defines the model. The 5000 does not include the deluxe 15000 model’s back jets, additional storage or three-way mixer/diverter arrangement. Keeping that distinction clear helps buyers compare price and functionality without paying for features they do not need. The 5000 Series buyers guide should be used to confirm this basic inclusion list.
The supplied components are intended to work as part of the complete enclosure. Before installation, unpack carefully, identify every carton and compare the parts against the current assembly information. If anything appears damaged or missing, photograph it and contact Aeros before starting assembly.
How the 2-way diverter works
The adjustable rainfall shower arm incorporates a separate 2-way diverter. This control changes the water outlet between the overhead rainfall shower head and the hand shower. It does not select a waterfall spout or back jets because those features are not part of the 5000.
The flick mixer controls the water supply and temperature, while the diverter determines which of the two shower outlets operates. Explaining these controls separately avoids a common misunderstanding: a two-way diverter does not mean the shower contains two mixers. During commissioning, test both positions, check that the selection is clear and inspect all accessible connections for leaks before the cubicle is put into regular use.
Fully enclosed construction and everyday benefits
The 5000 Aqua Series is a fully enclosed shower cubicle with its own walls, glass and reinforced acrylic base. This coordinated structure is designed to contain shower water within the enclosure when correctly assembled, installed and maintained. For many projects, that can reduce the complexity associated with building a conventional tiled shower area.
The internal surfaces contain no grout, so there are fewer porous joints to scrub and no shower grout to discolour or repair. The enclosure is also 100% silicone-free in its assembly. Easier-cleaning surfaces and mould prevention are meaningful benefits for busy households, rental properties and accommodation settings where predictable upkeep matters. As with any bathroom product, regular cleaning, ventilation and maintenance remain important.
Glass, frame, doors and handles
The enclosure uses 5 mm AS/NZS 2208 safety glass with a powder-coated aluminium frame. The frame is supplied in white. The glass and frame form part of the complete cubicle and should be handled carefully during unpacking and assembly. Safety glass must never be drilled, cut or modified after manufacture.
The front has two internal sliding doors. Spring-loaded quick-release bottom wheels assist with door installation and cleaning access, while twin-post handles provide a clear grip. Check that the top rollers are seated correctly, the bottom releases engage and both doors travel smoothly without rubbing. Correct alignment protects the rollers and helps the doors meet as intended.
Base, support frame and adjustable legs
The shower base is reinforced acrylic supported by a steel frame with adjustable legs. This structure spreads the load and allows careful levelling on the prepared floor. The base has a non-slip surface, but users should still exercise normal care because water and cleaning products can make any shower surface slippery.
Accurate levelling is essential. If the base is twisted or unsupported, door alignment, drainage and enclosure fit can be affected. The installer should establish the finished base position before connecting services, confirm the support points are stable and recheck level in both directions. Do not rely on pipework or wall panels to correct an uneven foundation.
Plumbing requirements and water pressure
The 5000 requires hot and cold water supplies and is designed for connection using two mini stops. The maximum working water pressure is 500 kPa. Where the site pressure may exceed that limit, the plumbing arrangement must be assessed and corrected by an appropriately qualified person before the shower is connected.
Plan isolation points so they remain usable and do not interfere with the rear walls, frame or base. Final plumbing work must comply with applicable Australian requirements and local rules. Before closing access, test the mixer, both diverter outlets and every connection under operating pressure. A controlled test at installation is far easier than diagnosing a concealed issue after the shower is in service.
Rainfall shower, hand shower and WELS details
The overhead rainfall shower provides the main showering outlet, while the hand shower offers a more directed spray for rinsing, cleaning the enclosure and assisting different users. The two-way diverter on the adjustable rainfall arm switches between these outlets.
The confirmed WELS registration is S14515, rated at 3 stars with a flow rate of 9.0 litres per minute. Australian Government WELS information allows buyers to compare registered water-using products on a consistent basis. Do not substitute an unconfirmed registration or flow claim when specifying the model. If fittings are ever replaced, select compatible components and confirm that the finished installation remains suitable for the water supply and applicable requirements.
Waste position and drainage planning
The 5000 uses a 50 mm horizontal waste plug. The confirmed rear-centre waste position is 600 × 200 mm. Treat these measurements as product-planning information and verify the current diagram and actual base before permanently locating site drainage.
Drainage planning should occur before the pallets are opened for assembly. Confirm the waste route, fall, connection access and any floor penetrations, and ensure the prepared position will not clash with the steel support frame or adjustable legs. The shower may be suitable for connection with a compatible macerator where required, but the macerator system must be selected and installed for the specific site. Never cut or modify the base without written product guidance.
Measuring the room before ordering
Measure the installation area at floor level, at the top of the intended enclosure and at several points between. Walls and floors are not always square, particularly in older Australian homes. Allow space for assembly, service connections and final adjustment rather than assuming the nominal 1200 × 900 mm footprint is the only clearance required.
Also measure the finished floor-to-ceiling height, doorways, hallways, stairs and turning points along the delivery route. The longest glass pallet is 195 cm, and the tray pallet is 125 × 95 cm. If access is tight, plan how individual cartons will be safely moved after delivery. Confirm the bathroom door can still operate and that other fixtures do not obstruct either side of the shower entrance.
Installation sequence and preparation
A successful installation starts with a level, stable floor and accurately positioned services. Read the current assembly information completely before beginning. Sort components by carton, protect glass edges and use enough people to move large panels safely. Assemble in the documented order so the base, rear panels, side walls, middle panel, front frame and doors remain aligned.
Do not drill tempered safety glass. Do not force panels into position or use the frame to pull an uneven base square. Keep packaging until the shower has been fully checked, because labels can help identify parts if support is needed. After assembly, test drainage and all water functions in a controlled way, then inspect the entire enclosure and surrounding area before normal use.
Cleaning and ongoing care
Routine care is straightforward because the cubicle has no grout lines inside. After showering, allow ventilation, rinse away soap residue where practical and wipe or squeegee glass and panels to limit mineral build-up. Use non-abrasive cleaners suitable for acrylic, coated aluminium and safety glass.
Avoid harsh scourers, blades and aggressive chemicals that can scratch the base or damage finished surfaces. Periodically clean the door tracks, check the quick-release wheels and confirm the doors remain aligned. Inspect plumbing connections, the waste and moving components if there is any change in performance. Prompt attention to a loose fitting or obstructed drain protects the shower and surrounding room.
5000 Aqua Series accessories and storage
The confirmed internal storage inclusion is one basket. It provides a practical place for everyday shower products without adding the multiple baskets and dispensers supplied with the deluxe 15000. Buyers who need more storage should consider how additional items could affect door movement, cleaning and the enclosure walls before adding anything.
The hand shower can help rinse the base, doors and panels during cleaning. Keep the hose clear of the sliding-door path and ensure it is not kinked. The accessories image on this guide is specific to the 5000’s basic inclusion set and should not be interpreted as adding deluxe components not listed in the confirmed inclusions section.
Assembly guides, warranty and genuine replacement parts
Use the current Aeros assembly guides when preparing and assembling the 5000 Aqua Series. Keep the model and purchase information available for registration and warranty enquiries, and use genuine compatible items from parts and accessories when replacement components are required. If the correct item or installation step is uncertain, contact Aeros before ordering or fitting a part.
5000 versus 15000: which rectangular shower should you choose?
Both models use the same 1200 × 900 mm rectangular front-entry enclosure format and the same two internal sliding-door arrangement. The decision is therefore mainly about shower equipment, storage and budget rather than external footprint.
Choose the 5000 if you want a straightforward rainfall shower and hand shower controlled by the rainfall-arm two-way diverter, a flick mixer and one basket. Choose the 15000 if you specifically value its deluxe controls and additional confirmed equipment, including four brass back jets, more storage and its separate three-way mixer/diverter system. Comparing only the features you will use helps keep the project commercially sensible. Use the 5000 Series buyers guide to keep the basic model comparison clear.
The 5000 Series buyers guide helps with the model comparison, but check current price, availability and delivery arrangements on the Shop product before ordering because these can change.
Freight and pallet sizes
Six cartons and two-pallet freight arrangement
The 5000 is supplied across two pallets containing six cartons in total. Pallet 1 contains five cartons: two clear side-wall cartons, one rear-wall carton, one door carton and one middle-panel carton. Pallet 2 contains one shower tray and accessories carton.
| Pallet | Cartons | Contents | Dimensions | Weight |
|---|---|---|---|---|
| Pallet 1 | 5 | 2 clear side-wall cartons; rear-wall carton; door carton; middle-panel carton | 195 × 125 × 30 cm | 90 kg |
| Pallet 2 | 1 | Shower tray and accessories | 125 × 95 × 34 cm | 45 kg |
Freight image placeholder: an accurate 5000 pallet photograph has not been supplied, so no photograph is shown as evidence of the carton arrangement.
Delivery access and receiving the pallets
Before ordering, confirm that a suitable delivery point is available and that the pallets can be received safely. National delivery is available, but the exact service, charge and timing depend on the destination and current freight arrangements. Ask Aeros for confirmation rather than relying on an assumed delivery date.
On arrival, inspect the outer packaging before signing where the carrier process permits. Record any visible damage with clear photographs and note it promptly. Move cartons upright and with appropriate assistance, keeping glass edges protected. Check that Pallet 1 has five cartons and Pallet 2 has the tray-and-accessories carton. Do not discard labels or packaging until every component has been identified and checked.
Ordering checklist for the 5000 Series buyers guide
Before placing the order, confirm the following:
- The 1200 × 900 mm footprint fits the prepared room.
- At least 2150 mm finished installation height is available.
- The 220 mm base-entry height suits the intended users.
- The 600 × 200 mm rear-centre waste position and 50 mm waste can be accommodated.
- Hot and cold supplies, isolation and pressure up to 500 kPa have been planned.
- The delivery route can handle the 195 cm glass pallet and 125 × 95 cm tray pallet.
- The basic five-part equipment list provides the functions you want.
- Current price, stock and freight have been checked on the Shop product.
The 5000 Series buyers guide checklist is intended to prevent avoidable ordering and installation problems, protecting both project time and budget. Complete every 5000 Series buyers guide check before submitting the order.
Common questions about the 5000 shower cubicle
Does it have swinging doors?
No. It uses two internal sliding doors, helping preserve clear space in front of the enclosure.
Can entry be from either side?
Yes. The front-entry arrangement can be configured for entry from either side.
Does the 5000 include back jets or a waterfall outlet?
No. Those are not part of the confirmed 5000 inclusion list.
What does the diverter select?
The rainfall-arm two-way diverter selects the rainfall shower head or hand shower.
Is the shower silicone-free?
The enclosure is described as 100% silicone-free in its assembly.
Can the safety glass be drilled?
No. Tempered safety glass must never be drilled or altered.
Why buy an Aeros fully enclosed shower cubicle?
Aeros has supplied more than 10,000 shower cubicles since 2000. The fully enclosed format is intended to give Australian buyers a practical alternative to building a conventional tiled shower, with coordinated components, no internal grout maintenance and a DIY-friendly assembly approach for appropriately prepared projects.
The value is not only the product footprint. Clear model information, known pallet sizes, replaceable parts support and direct assistance can reduce uncertainty before and after purchase. The 5000 is particularly compelling when a buyer wants rectangular space and simple shower functions without the additional deluxe hardware of the 15000.
Get help before you order
If any measurement, service position, delivery detail or model feature remains uncertain, contact Aeros before ordering. Share a simple room plan, finished dimensions and photographs where useful. Early clarification can prevent selecting the wrong footprint, locating drainage incorrectly or discovering that cartons cannot reach the bathroom.
For current commercial information, use the Shop product page. For technical preparation, consult the relevant assembly information. For site-specific plumbing, electrical or building requirements, use appropriately qualified professionals. Product guidance cannot replace an assessment of the actual property.
5000 Aqua Series summary
The 5000 Aqua Series is a 1200 × 900 mm rectangular front-entry shower cubicle with two internal sliding doors and entry available from either side. Its confirmed equipment is intentionally simple: flick mixer, adjustable rainfall shower arm with two-way diverter, rainfall shower head, hand shower and one basket.
Its 5 mm AS/NZS 2208 safety glass, white powder-coated aluminium frame, reinforced non-slip acrylic base, steel support frame and adjustable legs form a coordinated fully enclosed shower. The minimum installation height is 2150 mm, the base entry is 220 mm, and drainage planning uses the confirmed 600 × 200 mm rear-centre waste position with a 50 mm horizontal waste plug. The 5000 Series buyers guide brings these confirmed measurements together for the final site check.
Use this 5000 Series buyers guide alongside the current Shop listing and assembly information, verify the room and delivery route, and contact Aeros whenever a site detail needs confirmation.
