Is the 15000 Aqua Series Deluxe 1200 × 900 Shower Right for Your Bathroom?
15000 Series buyers guide information is provided here to help Australian renovators, DIY buyers, landlords, builders and modular-housing projects decide whether this deluxe rectangular shower is the right fit. The Aeros 15000 Aqua Series combines a 1200 × 900 mm footprint, two internal sliding doors and an enclosed shower-pod format with upgraded shower functions and internal storage.
This guide brings the important buying questions into one place: room measurements, entry layout, shower controls, inclusions, glass and frame construction, base support, plumbing, drainage, installation height, cleaning, delivery and the difference between the 15000 and the basic 5000. Use it before ordering so the model, services and delivery arrangements are checked together rather than after the cubicle arrives.
Quick specifications
Use these confirmed details for a quick model check before measuring and ordering.
| Model format | 1200 × 900 mm deluxe rectangular front-entry fully enclosed shower cubicle |
|---|---|
| Doors and hardware | Two internal sliding doors, twin-post handles and spring-loaded quick-release bottom rollers |
| Glass and frame | 5 mm Australian Standard safety glass with a white powder-coated aluminium frame |
| Panels | Opaque Aqua internal panels with clear glass elsewhere |
| Base | Reinforced acrylic non-slip base with steel support frame and adjustable legs; 220 mm entry height |
| Shower height | Adjustable rainfall arm height 2150–2290 mm; minimum installation height 2150 mm |
| Controls | WaterMark three-way mixer/diverter with front-access mixer cartridge, plus a separate 2-way diverter on the adjustable rainfall shower arm |
| Shower outlets | Rainfall shower head; three-function push-button hand shower and hose; waterfall spout; four brass back jets |
| Internal accessories | Hand shower rail with adjustable soap dish and hand shower holder; two baskets and two shampoo dispensers; internal grab bar; internal plumbing hoses |
| Water rating | WELS registration S14515, 9.0 L/min, 3 stars; maximum pressure 500 kPa |
| Waste | 50 mm horizontal waste plug with confirmed rear-centre position of 600 × 260 mm; macerator compatible |
| Freight | Two pallets: glass pallet 90 kg and tray pallet 45 kg |
Who the 15000 Aqua Series suits
The 15000 Aqua Series suits buyers who want the extra internal width of a rectangular shower cubicle and prefer sliding doors that remain within the enclosure footprint. It is particularly useful where a hinged door would conflict with a vanity, toilet, doorway or circulation path.
Its deluxe fittings make it the higher-feature alternative to the 5000. It can suit a main bathroom, ensuite, rental renovation, granny flat, modular building, second bathroom or replacement project where a complete enclosed shower is commercially attractive. The 15000 Series buyers guide should be used alongside accurate site measurements and advice from the appropriately licensed trades responsible for the water and waste connections.
15000 shower cubicle size and front-entry layout
The 15000 shower cubicle has one confirmed nominal size: 1200 × 900 mm. The longer 1200 mm dimension provides the rectangular footprint, while the front-entry arrangement allows access through two internal sliding glass doors. Because the doors slide rather than swing into the room, the space immediately outside the shower can remain available for other bathroom fixtures.
Measure the intended location at floor level and higher on the walls. Check skirtings, trims, wall irregularities, nearby fittings and the practical path used to bring the cartons into the room. Nominal product size is only one part of planning; the installation space and service locations must also work.
What is included with the 15000 Aqua Series
The confirmed 15000 Aqua Series package includes the coordinated components below:
- WaterMark three-way mixer/diverter with front-access mixer cartridge.
- Adjustable rainfall shower arm with a separate 2-way diverter.
- Rainfall shower head.
- Hand shower rail with adjustable soap dish and hand shower holder.
- Three-function push-button hand shower and hand-shower hose.
- Waterfall spout.
- Four brass back jets.
- Two baskets and two shampoo dispensers.
- Internal grab bar.
- Internal plumbing hoses connecting the shower’s supplied plumbing components.
This is a deluxe equipment package. External hot and cold services, mini stops, site drainage and trade work are separate installation considerations.
How the 15000 deluxe shower controls work
The 15000 has two distinct diverter controls. The WaterMark three-way mixer/diverter controls water temperature and directs flow between the rainfall shower, waterfall spout and four brass back jets. Its front-access mixer cartridge is intended to make future cartridge access more practical.
A separate 2-way diverter is fitted to the adjustable rainfall shower arm. It switches between the rainfall shower head and the hand shower. Keeping these two controls distinct helps buyers and installers understand that the rainfall-arm diverter is not the same component as the three-way mixer/diverter. The 15000 Series buyers guide records both controls so the deluxe specification is not mistakenly reduced to a single diverter.

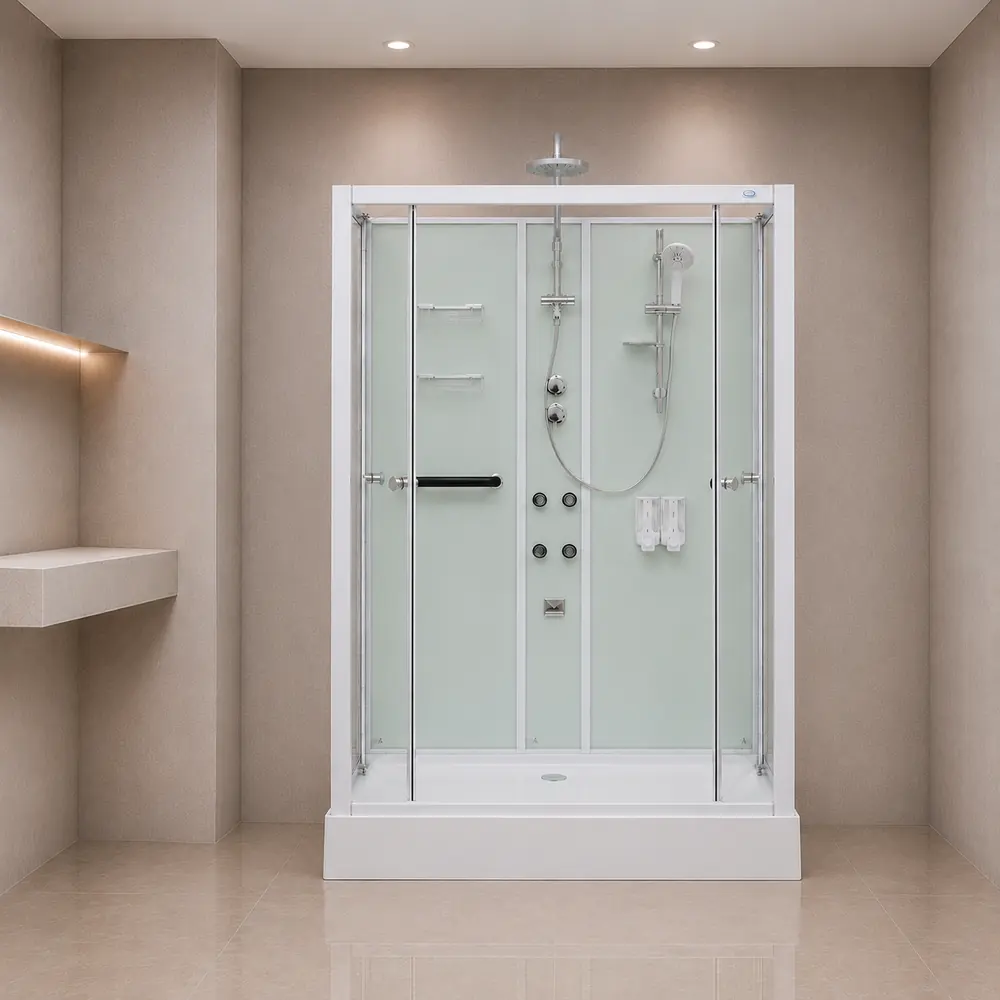

Rainfall shower, hand shower, waterfall and back jets
The rainfall head provides the overhead shower outlet. The three-function push-button hand shower offers a movable option and is supported on a rail with an adjustable holder and soap dish. The waterfall spout and four brass back jets provide the additional outlets that distinguish the deluxe model.
The hand-shower rail, adjustable soap dish and holder form one combined part. The two baskets and two shampoo dispensers provide additional storage, while the internal grab bar is part of the confirmed equipment list. Water pressure, plumbing condition and correct connection affect the performance of every outlet, so site services should be assessed before installation.
Fully enclosed shower cubicle construction and buyer benefits
As a fully enclosed shower cubicle, the 15000 brings together the reinforced tray, wall panels, front glass and shower fittings in a coordinated enclosure. This format can reduce reliance on tiled shower walls and avoids grout inside the cubicle, helping simplify regular cleaning and mould prevention.
The enclosure is designed to be watertight when correctly assembled, connected and maintained. It is also 100% silicone-free for the cubicle assembly. Site plumbing and drainage still require correct workmanship, and the surrounding bathroom must be suitable for its intended use. For buyers comparing project time and labour, a complete shower pod can remove several wet-area finishing steps associated with a conventional tiled shower.
Safety glass, Aqua panels, frame, doors and handles
The enclosure uses 5 mm Australian Standard safety glass and a powder-coated aluminium frame. The frame colour is white. The Aqua wall panels are opaque, while the remaining glass panels are clear. Tempered safety glass must never be drilled or modified after manufacture; any required holes are made before tempering.
The rectangular front has two internal sliding doors with twin-post handles. Spring-loaded quick-release bottom rollers support door removal and cleaning access when handled according to the product instructions. The sliding action should be checked after assembly, and the upper wheel adjustment used to achieve smooth, correctly aligned movement.
Reinforced non-slip base, steel frame and adjustable legs
The 15000 uses a reinforced acrylic base supported by a steel frame and adjustable legs. This structure allows the installer to establish level support before the enclosure is completed. The base entry height is approximately 220 mm, which should be considered when assessing accessibility and who will use the shower.
The tray is described as non-slip, but normal wet-area care remains important. Confirm the floor is structurally suitable, stable and level enough for the installation. The adjustable legs are for levelling and support; they are not a substitute for correcting an unsuitable substrate.
Plumbing preparation, mini stops and internal hoses
The shower requires hot and cold water supplies. Two mini stops are used for the site connections and allow the water supply to the cubicle to be isolated. The preferred service planning height should be checked against the assembly information and the actual installation before final pipework is completed.
Internal plumbing hoses connecting the supplied shower components are included. External pipes, mini stops and the licensed connection work are site responsibilities. All hoses and fittings should be checked before the cubicle is placed into its final position, and connections should be tested for leaks while they are still accessible. Maximum operating pressure is 500 kPa.
WaterMark, WELS and Australian compliance details
The 15000 Series buyers guide records the confirmed compliance information used for model selection and installation planning. The rainfall shower is WELS registration S14515, rated at 9.0 litres per minute and 3 stars. Australian Government WELS information allows buyers to compare registered water-using products on a consistent basis. The confirmed CSI licence number is 7671, and the maximum water pressure is 500 kPa.
WaterMark applies to relevant plumbing products and should be considered together with WELS registration and the work of appropriately licensed trades. These details do not remove the need to follow current Australian requirements for the property and jurisdiction. Preserve product labels, purchase records and the correct assembly information for future reference.
Waste position, 50 mm drainage and macerator compatibility
The 15000 uses a 50 mm horizontal waste plug. The confirmed rear-centre waste position is 600 × 200 mm. Treat these measurements as product-planning information and verify the current diagram and actual base before permanently locating site drainage.
Drainage planning should occur before assembly. Confirm the waste route, fall, connection access and any floor penetrations, and ensure the prepared position will not clash with the steel support frame or adjustable legs. The shower can be used with a suitable macerator system where the overall drainage design permits it. Macerator selection, connection and discharge arrangements require appropriate professional assessment.
1200 x 900 shower cubicle measuring checklist
For a 1200 x 900 shower cubicle, measure more than the nominal floor footprint. Confirm room width and depth, ceiling height, access through doors and hallways, hot and cold service positions, drainage route, power or other services nearby, and sufficient working room for assembly.
The adjustable rainfall arm gives a completed height range of approximately 2150–2290 mm, and the minimum installation height is 2150 mm. Allow for the way the shower is raised, levelled and connected. Check overhead obstructions, sloping ceilings, cornices and lights. A careful pre-order check protects the purchase by finding conflicts while they can still be resolved.
Installation planning and safe assembly sequence
Plan the work before opening every carton. Confirm the tray position, level the supporting frame, establish the waste connection and keep plumbing accessible for testing. Fit model-specific components to the appropriate panels at the stage directed by the current assembly guide, then complete the enclosure and door alignment.
The door and wall orientation is reversible, giving useful flexibility for the room layout, but the final configuration should be decided before service positions are fixed. Do not drill the safety glass. Where wall restraints or other site fixings are required, work only in approved frame or wall locations. Licensed trades should complete regulated plumbing and drainage work.
Cleaning, mould prevention and ongoing maintenance
The absence of grout inside the cubicle removes a common maintenance area. Wiping the clear glass and Aqua panels after use helps limit soap residue and mineral deposits. Use non-abrasive products suitable for acrylic, coated aluminium and shower fittings, and avoid harsh tools that may scratch the surfaces.
Keep the door tracks clear, inspect rollers and handles, and periodically check accessible hose and plumbing connections. Clean the rainfall head, hand shower, waterfall outlet and back jets in a way that protects their finish. Good ventilation and routine drying support mould prevention throughout the bathroom, while prompt attention to any unusual movement or leakage helps protect the enclosure.
15000 Aqua Series storage and internal convenience
The deluxe storage package includes two baskets and two shampoo dispensers. This gives everyday toiletries dedicated positions inside the cubicle and can reduce the need for separate wall-mounted accessories. The adjustable soap dish on the hand-shower rail adds another convenient location.
Place items so they do not interfere with the sliding doors, hand shower or controls. Avoid overloading baskets or using them as supports. The internal grab bar is included, but buyers with specific mobility or accessibility requirements should obtain appropriate advice about the complete bathroom design rather than treating one included component as a substitute for an assessed accessible installation.
Assembly guides, warranty and genuine replacement parts
Use the current Aeros assembly guides when preparing and assembling the 15000 Aqua Series. Keep the model and purchase information available for registration and warranty enquiries, and use genuine compatible items from parts and accessories when replacement components are required. If the correct item or installation step is uncertain, contact Aeros before ordering or fitting a part.
15000 Aqua Series versus 5000 Aqua Series
The 15000 and 5000 share the 1200 × 900 mm rectangular front-entry format, two internal sliding doors, twin-post handles and spring-loaded quick-release bottom rollers. The main buying decision is the equipment level.
| Feature | 15000 Aqua Series | 5000 Aqua Series |
|---|---|---|
| Model level | Deluxe | Basic |
| Footprint | 1200 × 900 mm | 1200 × 900 mm |
| Main control | WaterMark three-way mixer/diverter | Flick mixer |
| Shower outlets | Rainfall, hand shower, waterfall and four back jets | Rainfall and hand shower |
| Storage | Two baskets and two shampoo dispensers | One basket |
Choose the 15000 when its deluxe functions and additional storage justify the upgrade. Choose the 5000 when the same enclosure shape with simpler shower equipment better matches the project.
Freight and pallet sizes for the 15000
Six cartons and two-pallet freight arrangement
The 15000 is supplied across two pallets containing six cartons in total. Pallet 1 contains five cartons: two clear side-wall cartons, one rear-wall carton, one door carton and one middle-panel carton. Pallet 2 contains one shower tray and accessories carton.
| Pallet | Cartons | Contents | Dimensions | Weight |
|---|---|---|---|---|
| Pallet 1 | 5 | 2 clear side-wall cartons; rear-wall carton; door carton; middle-panel carton | 195 × 125 × 30 cm | 90 kg |
| Pallet 2 | 1 | Shower tray and accessories | 125 × 95 × 34 cm | 45 kg |
The 5000 and 15000 use the same confirmed two-pallet carton arrangement. Use these packed dimensions and weights when planning delivery, unloading and storage; they are separate from the installed 1200 × 900 mm shower footprint.
Delivery access, unloading and safe storage
Before dispatch, confirm the delivery address, vehicle access and a suitable unloading location. The pallets are substantial, so plan how they will be received and moved without damaging cartons, glass or fittings. Check gates, driveways, apartment access, stairs, lifts and the route from the delivery point to secure storage.
Inspect the shipment when received and follow the carrier and Aeros instructions for reporting visible damage or missing items. Store cartons upright or flat only as directed, protected from weather and building activity. Keep labels with their cartons so components remain identifiable. Do not begin installation until the correct model and complete shipment have been checked.
Ordering checklist from the 15000 Series buyers guide
Before placing the order, confirm:
- The 1200 × 900 mm footprint fits at multiple heights.
- The front-entry sliding-door arrangement works with nearby fixtures.
- At least 2150 mm installation height is available.
- Hot and cold services, two mini stops and maximum 500 kPa pressure are planned.
- The 50 mm waste and drainage route are suitable.
- The base entry height of approximately 220 mm suits the intended user.
- Delivery access, unloading and secure storage are organised.
- The deluxe functions are preferred over the basic 5000 package.
This checklist turns the 15000 Series buyers guide into a practical purchasing tool and reduces the risk of discovering a preventable site conflict after delivery.
Common questions about the deluxe rectangular shower cubicle
Is the 15000 a corner-entry model?
No. It is a rectangular front-entry shower with two internal sliding doors.
What size is it?
The confirmed nominal footprint is 1200 × 900 mm.
Does it include both a rainfall shower and hand shower?
Yes. It also includes a waterfall spout and four brass back jets.
How many diverters are there?
There is a WaterMark three-way mixer/diverter and a separate 2-way diverter on the adjustable rainfall arm.
Can the tempered glass be drilled?
No. Never drill tempered safety glass.
Is it silicone-free?
The cubicle assembly is described as 100% silicone-free.
Can it connect to a macerator?
It is compatible with a suitable system where the overall drainage design is appropriate.
Why choose an Aeros deluxe rectangular shower cubicle?
Aeros has supplied more than 10,000 shower cubicles since 2000. The enclosed format is intended to give Australian buyers a coordinated alternative to constructing a conventional tiled shower from many separately selected parts. National delivery makes the range available to projects beyond a local showroom area.
The commercial value comes from selecting the right model before work begins. The 15000 combines a space-conscious sliding entry with deluxe shower functions, storage and an enclosed, grout-free interior. Accurate measurement, correct services and planned delivery protect those benefits. The product is not simply a list of fittings; it is a complete bathroom decision involving fit, access, installation and future support.
Get help before ordering the 15000 Aqua Series
If a measurement, plumbing position, delivery detail or product feature remains uncertain, contact Aeros before ordering. Provide the room dimensions, photographs or a simple plan where helpful. Asking the question early is usually easier than changing building work or freight arrangements later.
Use the product page to review the current purchasing information. The assembly guides, warranty registration, customer service and parts pages provide the supporting paths needed after model selection. The 15000 Series buyers guide supports the decision, while the current product page remains the source for live price, stock and ordering options.
15000 Aqua Series summary
The 15000 Aqua Series is a deluxe 1200 × 900 mm rectangular front-entry shower cubicle with two internal sliding doors. It combines 5 mm Australian Standard safety glass, opaque Aqua wall panels, a white powder-coated aluminium frame and a reinforced non-slip acrylic base supported by a steel frame and adjustable legs.
Its confirmed shower package includes the WaterMark three-way mixer/diverter, a separate rainfall-arm 2-way diverter, rainfall head, three-function hand shower, waterfall spout, four brass back jets, storage fittings, internal grab bar and connecting internal hoses. Measure carefully, plan the water and 50 mm waste services, allow the required height and arrange delivery access before ordering.
