Is the 11000 Aqua Series Round Corner Shower Right for Your Bathroom?
11000 Series buyers guide: the Aeros 11000 Aqua Series is a basic, fully enclosed round corner shower cubicle available in 800 × 800 mm, 900 × 900 mm and 1000 × 1000 mm external sizes. It combines two internal sliding doors with essential rainfall and hand-shower functions, a reinforced base and Aqua rear panels.
Use this guide to compare sizes, understand the included controls, plan plumbing and drainage, check freight requirements and decide whether the basic 11000 or deluxe 12000 better suits your bathroom.
What is a fully enclosed shower cubicle or shower pod?
A fully enclosed shower cubicle brings the tray, wall panels, glass, doors and shower fittings together as a model-specific package. In this 11000 Series buyers guide, that distinction matters because its internal shower surfaces do not rely on tiled bathroom walls, helping reduce grout maintenance and simplify planning.
The Aeros clip-lock enclosure assembles without silicone, glue or screws. “100% silicone-free” refers to the approved enclosure assembly; licensed plumbing connections still require compliant materials and methods. The cubicle can stand independently when correctly assembled and connected and may be dismantled later if required.
For clarity, this 11000 Series buyers guide describes the enclosure as watertight when correctly assembled and installed. This does not mean the surrounding room or building is waterproof.

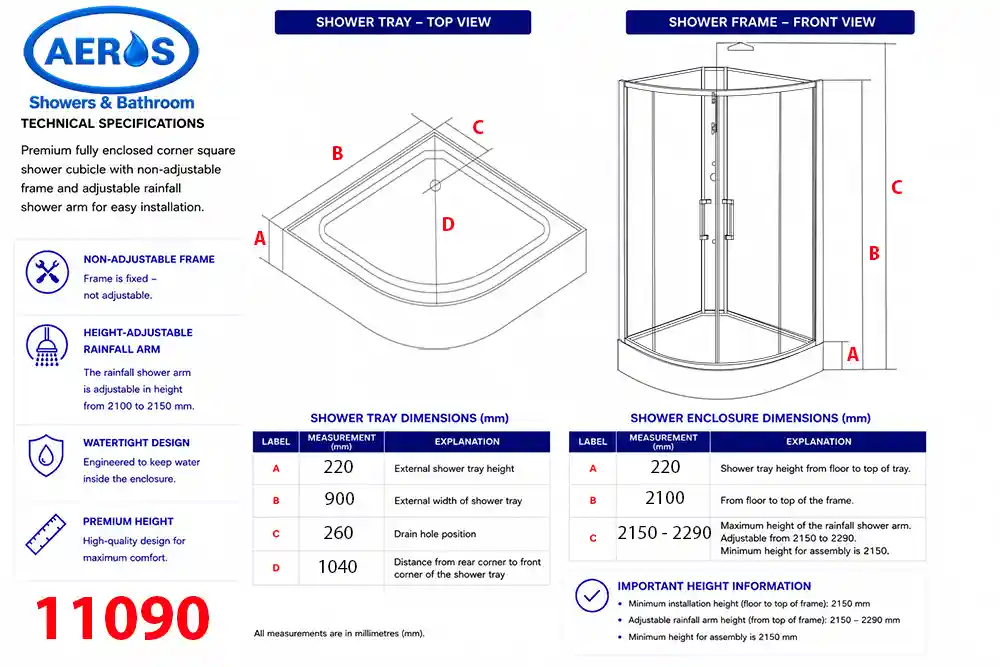

11000 Series buyers guide: quick specifications
| Specification | 11000 Aqua Series |
|---|---|
| Layout | Round corner-entry shower |
| External sizes | 11080: 800 × 800 mm; 11090: 900 × 900 mm; 11100: 1000 × 1000 mm |
| Doors | Two internal sliding doors |
| Glass | 5 mm Australian Standard safety glass |
| Frame | White powder-coated aluminium |
| Panels | Opaque aqua rear panels; remaining panels clear |
| Base | Reinforced non-slip acrylic tray, steel support frame and adjustable levelling legs |
| Height | Approximately 2150–2290 mm; minimum installation height 2150 mm |
| Base entry height | 220 mm |
| Waste | 50 mm horizontal waste plug |
| Maximum pressure | 500 kPa |
| WELS | S14515; 9.0 L/min; 3 stars |
| Safety-glass licence | CSI Licence 7671 |
Who this 11000 Series buyers guide is for
This 11000 Series buyers guide is for buyers wanting a compact basic shower with a rounded front that can reduce the amount of bathroom floor space occupied outside the enclosure. The three external sizes suit different room dimensions and user needs.
The 11000 is especially relevant to renovators, DIY-oriented buyers, landlords, granny-flat projects and second bathrooms where easy cleaning, no grout maintenance and a fully enclosed design are priorities.
11000 Series buyers guide to the 11080, 11090 and 11100 sizes
The model number identifies the nominal external footprint of the 11000 Aqua Series Shower Cubicle, not the internal standing area.
11080 — 800 × 800 mm
The smallest option conserves the most bathroom floor area but provides the least internal room.
11090 — 900 × 900 mm
The middle size balances external space use with additional internal room.
11100 — 1000 × 1000 mm
The largest option provides the greatest internal showering space and requires the largest external footprint.
Measure at several points and check skirting, wall projections, nearby fixtures and assembly space. Do not scale dimensions from an image.
Round corner entry and double sliding doors
The 11000 is a round corner-entry shower cubicle. Its curved front and central entry distinguish it from square front-entry and square corner-entry models.
Two doors slide internally and meet at the centre. They use straight-grip handles and push-button quick-release bottom rollers, which assist lower-door cleaning access. Magnetic strips bring the doors together when closed.
The wall and door configuration is reversible where supported by the current model-specific assembly instructions. Confirm the planned orientation before plumbing is fixed.

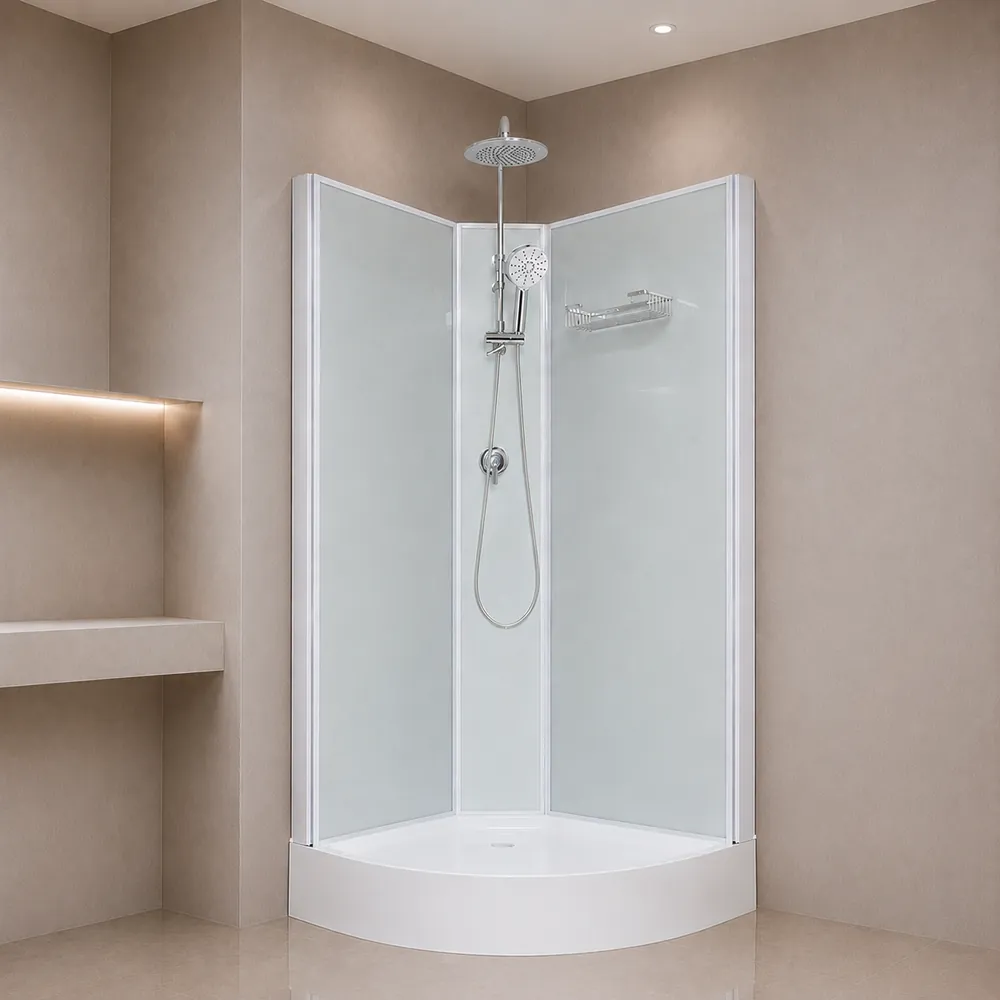

Shower functions and complete confirmed inclusions
This 11000 Series buyers guide confirms that every basic 11000 Aqua Series includes:
- Flick mixer.
- Adjustable rainfall shower arm with 2-way diverter.
- Rainfall shower head.
- Hand shower and hose.
- One aluminium storage basket.
- Internal plumbing hoses connecting the supplied components.
- Two internal sliding doors with straight-grip handles.
- Push-button quick-release bottom rollers and magnetic door strips.
- 50 mm horizontal waste plug.
The 11000 does not include a waterfall spout, back jets, shampoo dispensers or internal grab bar. Those extra functions and fittings belong to the deluxe 12000.
Accessories, basket and internal storage
The 11000 includes one aluminium storage basket for keeping commonly used shower items within easy reach. This is the model’s dedicated internal storage fitting. The 11000 does not include shampoo dispensers or an internal grab bar; those additional fittings are included with the deluxe 12000.
How the 2-way diverter works
The 11000 Aqua Series Shower Cubicle has one diverter on the adjustable rainfall shower arm. It switches water between the overhead rainfall shower head and the hand shower. The flick mixer controls water supply and temperature; the arm-mounted diverter selects the outlet.
As explained in this 11000 Series buyers guide, this is simpler than the deluxe 12000 arrangement. The 11000 has no three-way mixer/diverter because it has no waterfall-spout or back-jet circuits. Property plumbing conditions influence performance, and maximum operating pressure is 500 kPa.
Construction, safety glass and Aqua panels
The 11000 Aqua Series Shower Cubicle uses 5 mm Australian Standard safety glass in a white powder-coated aluminium frame. Rear panels are opaque aqua and the remaining panels are clear. The safety glass is covered by CSI Licence 7671.
This 11000 Series buyers guide confirms that safety glass is drilled and prepared before tempering. Tempered glass must never be drilled, cut or modified on site. Use only the factory-prepared holes, supplied components and current instructions.
The Aeros clip-lock system joins the enclosure without screws, glue or silicone and allows later dismantling if required.
Reinforced base, levelling and entry height
The non-slip acrylic tray is reinforced by a steel base-support frame and adjustable levelling legs. The legs allow the tray to be levelled on a suitable load-bearing floor before the enclosure is completed.
For buyers using this 11000 Series buyers guide to plan access, the base entry height is 220 mm. Consider this step when assessing access. Allow working space around the tray and retain suitable service access after installation.
Water supply preparation: included and not included
Included: internal plumbing hoses connecting the supplied shower fittings and the hand-shower hose.
Required but not included: two mini stops and suitable external stainless-steel braided supply hoses connecting the premises’ hot and cold water supply to the shower inlets.
Preferred supply height is approximately 2150 mm where practical. Mini stops and hose routes must remain accessible. A licensed plumber must complete connections and confirm compliance.
Rainfall shower, hand shower and WELS details
The overhead rainfall shower provides the main showering outlet, while the hand shower offers a more directed spray for rinsing, cleaning the enclosure and assisting different users. The two-way diverter on the adjustable rainfall arm switches between these outlets.
WaterMark identifies applicable plumbing and drainage products certified under the Australian plumbing product certification scheme. The confirmed WELS registration is S14515, rated at 3 stars with a flow rate of 9.0 litres per minute. Australian Government WELS information allows buyers to compare registered water-using products on a consistent basis. Maximum operating pressure is 500 kPa; arrange pressure reduction where required and confirm installation-specific requirements with the licensed plumber.
Waste position, drainage and macerator compatibility
The 11000 includes a 50 mm horizontal waste plug. Its arrangement allows access from inside the shower, assisting connection or later removal.
This 11000 Series buyers guide recommends confirming drainage before ordering. A compatible macerator may be considered where gravity drainage is unavailable. Selection, pipework, falls, traps, discharge and compliance depend on the property and must be assessed by a qualified installer.
Height, clearances and installation planning
The adjustable rainfall arm gives the 11000 Aqua Series Shower Cubicle an approximate completed height of 2150–2290 mm. Minimum installation height is 2150 mm, and extra working clearance may be required during assembly.
Check sloping ceilings, bulkheads, beams, lights, fans and other obstructions. Plan the footprint, corner entry, water routes, waste, service access and movement around nearby fixtures.
Follow only current instructions matching the selected 11080, 11090 or 11100. Never drill tempered glass or scale dimensions from a photograph.
Cleaning and ongoing maintenance
The enclosed panels avoid grout lines inside a conventional tiled shower area, reducing grout-maintenance work. This 11000 Series buyers guide recommends routine cleaning using methods suitable for acrylic, powder-coated aluminium, plumbing finishes and safety glass.
Push-button quick-release bottom rollers assist lower-door cleaning access. Keep tracks, rollers, magnetic strips, waste and outlets free of build-up, and use genuine model-specific replacement parts.
11000 Series buyers guide to cartons and two-pallet freight
The 11000 Aqua Series shower cubicle is packed into four cartons: the shower tray carton with accessories inside, rear-walls carton, middle-panel carton and door carton.
Pallet 1 carries the three glass-component cartons: rear walls, middle panel and doors. Pallet 2 carries the single shower-tray carton with the accessories packed inside.
Plan carrier access, unloading assistance, dry storage and the route from the delivery point to the assembly area. Large glass cartons and pallets are not one-person lifts.
Freight / Pallet sizes
| Model | Pallet | Contents | Dimensions | Freight weight |
|---|---|---|---|---|
| 11080 | 1 — glass components | Rear-walls carton; middle-panel carton; doors carton | 194 × 62 × 33 cm | 75 kg |
| 11080 | 2 — shower tray | Shower tray carton with accessories | 85 × 85 × 34 cm | 35 kg |
| 11090 | 1 — glass components | Rear-walls carton; middle-panel carton; doors carton | 194 × 72 × 33 cm | 80 kg |
| 11090 | 2 — shower tray | Shower tray carton with accessories | 95 × 95 × 34 cm | 40 kg |
| 11100 | 1 — glass components | Rear-walls carton; middle-panel carton; doors carton | 194 × 85 × 27 cm | 90 kg |
| 11100 | 2 — shower tray | Shower tray carton with accessories | 105 × 105 × 34 cm | 50 kg |
Each 11000 Aqua Series shower is packed into four cartons in total: three glass-component cartons on Pallet 1 and one shower-tray carton with the accessories packed inside on Pallet 2. Use the model-specific figures when arranging transport, unloading and storage.
Delivery, unloading and storage
Use the delivery section of this 11000 Series buyers guide to plan for both pallets before they arrive. Confirm that the carrier can access the address and prepare a safe, dry location for both pallets. Arrange capable assistance and suitable handling equipment. Check roads, gates, driveways, lifts, stairs, doorways and turning space.
Keep cartons upright where marked, protect them from impact and weather, inspect the delivery before installation and report transport damage promptly under the current Aeros process.
11000 Aqua Series versus 12000 Aqua Series
| Feature | 11000 Aqua Series | 12000 Aqua Series |
|---|---|---|
| Level | Basic | Deluxe |
| Layout | Round corner entry | Round corner entry |
| Sizes | 800, 900 and 1000 mm | 900 and 1000 mm |
| Main control | Flick mixer | WaterMark three-way mixer/diverter |
| Rainfall / hand shower | Arm 2-way diverter | Arm 2-way diverter |
| Waterfall spout | Not included | Included |
| Back jets | Not included | Four brass back jets |
| Storage | One basket | Two baskets and two shampoo dispensers |
| Internal grab bar | Not included | Included |
Use this 11000 Series buyers guide comparison to choose the 11000 for the 800 mm option, simpler controls and essential shower functions, or the 12000 when deluxe water functions and additional fittings matter.
Assembly guides, warranty, genuine parts and support
Use the current assembly guide for the exact 11080, 11090 or 11100 model before plumbing positions are fixed. The guide does not replace licensed plumbing work or site-specific compliance advice.
Current warranty conditions, registration, genuine model-specific parts and customer support are available from Aeros. Provide the series, size, purchase details and component position when requesting help.
Frequently asked questions
Does the 11000 include a waterfall spout?
No. It includes rainfall and hand-shower functions. The deluxe 12000 adds a waterfall spout and four brass back jets.
How does the hand shower operate?
The rainfall arm’s 2-way diverter switches between the rainfall head and hand shower.
Are the sizes internal or external?
The 800, 900 and 1000 mm figures are external measurements.
Do the doors swing into the room?
No. Two curved doors slide internally and meet at the corner entry.
What is the minimum installation height?
2150 mm, with additional working clearance potentially required.
Can tempered glass be drilled?
No. It must never be drilled, cut or modified on site.
Is the enclosure silicone-free?
Yes. The approved clip-lock enclosure assembly is 100% silicone-free; plumbing connections remain separate.
Can a macerator be used?
A compatible unit may be possible, subject to qualified assessment of drainage and compliance.
Use this 11000 Series buyers guide to choose your size
Before ordering, use this 11000 Series buyers guide to confirm the 11080, 11090 or 11100 external size, room height, corner-entry clearance, waste route, water-supply route, delivery access and plumbing parts required on site. The Shop page contains current price, stock and size-selection controls.
If any measurement, connection or delivery detail is uncertain, contact Aeros before purchasing. Resolving it first can prevent the wrong size being ordered and avoid installation delays.
Why choose an Aeros shower cubicle?
An Aeros fully enclosed shower cubicle brings the tray, wall panels, safety-glass enclosure and shower fittings together in one coordinated package. Its watertight enclosed construction can reduce tiled wet-area work, remove grout maintenance and support easier cleaning, helping renovators, DIY buyers, landlords and builders plan with confidence. The 11000 Aqua Series provides a rounded corner-entry footprint in three sizes, backed by Aeros shower experience in Australia since 2000.
11000 Aqua Series summary
The 11000 Aqua Series is the basic round corner-entry option with sliding doors, rainfall shower, hand shower and one basket. Choose 800 × 800, 900 × 900 or 1000 × 1000 after checking the external footprint, door access, 2150 mm minimum installation height, plumbing and drainage preparation, and pallet delivery access. Use the product link below to review the available sizes before ordering.
